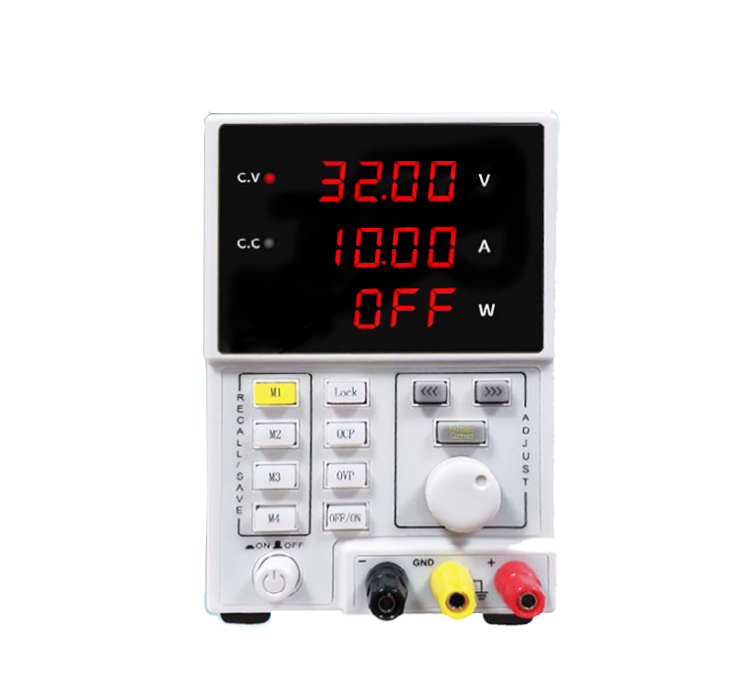

Switching laboratory power supply 0-32V | 0-10A
Description
- Switching · ripple 50 mVrms (CV) / 50 mArms (CC)
- 0–32 V | 0–10 A
- 4-digit display with power reading
- Output on/off · programmable via RS485
Model
LPSSL-032-10-14PR (SKU 10100181)
Stock status
Coming soon to our stock in Alicante
Shipping
Free (mainland Spain)
Invoice
With VAT, for companies and institutions
Phone
+34 649 12 13 53 – answered by a person in Spain, not a robot
Email
info@mekelson.com – useful answers from our technical team
Technical Data
Output Voltage DC
0...32 V
Output Current DC
0...10 A
Power Supply Type
Switching
Number of outputs
1
Programmable (RS485/USB)
Yes
Efficiency %
≤ 85 %
DC voltage line regulation ±10%(FS)
< 0.3%
Ripple U mVrms
50 mVrms
DC current accuracy(FS)
< 0.5%
Ripple I mArms
50 mArms
Operating temperature
-10 °C - 40 °C
Operating relative humidity
< 80%
Storage temperature
-40 °C - 85 °C
Storage relative humidity
< 80%
Current auto-ranging (mA)
No
Output on/off
Yes
Voltage and current
Fine adjustment
No
DC voltage accuracy(FS)
< 0.5%
DC voltage load regulation 0-100%(FS)
< 0.5%
DC current line regulation ±10%(FS)
< 0.3%
DC current load regulation 0-100%(FS)
< 0.3%
Input voltage
110 VAC 60Hz / 220 VAC 50 Hz
Display
Display digits
4
Power display
Yes
Device configuration
Model name
LPSSL
Cable length
1.5m
Cable plug
EU plug
USB ports
USB Ports
No
Weight & dimensions
Dimensions
237 x 111 x 162 mm
Weight
2.3 Kg
