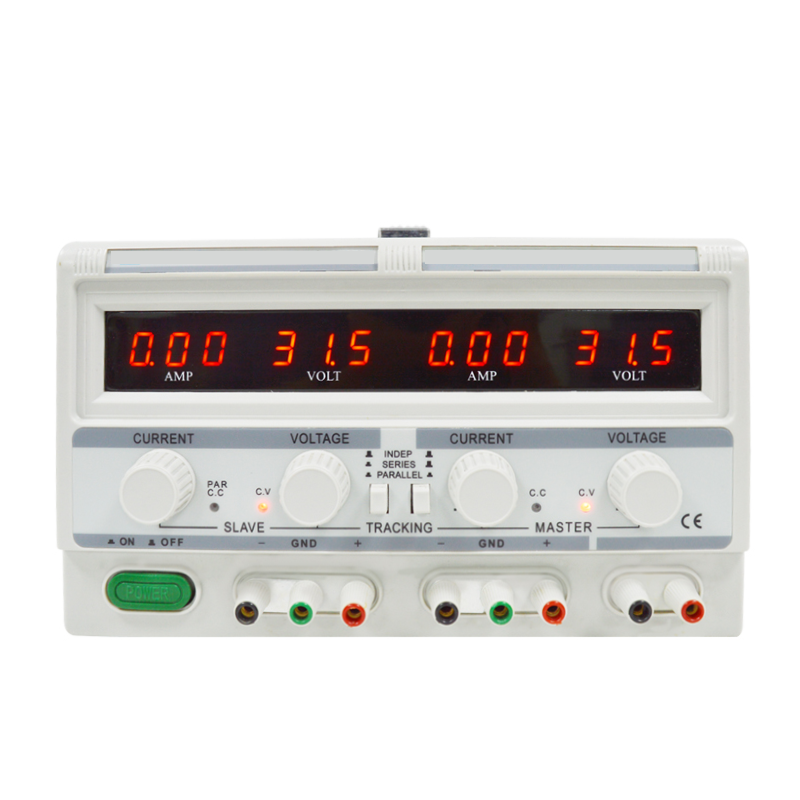

Linear laboratory power supply 0-30V | 0-2A
Description
- Linear · ripple ≤ 5 mVrms (CV) / 5 mArms (CC)
- 2 × 0–30 V | 0–2 A · automatic CV/CC
- 3-digit display · coarse and fine adjustment
Model
LPSLE-030-02-2F3 (SKU 10100163)
Stock status
Coming soon to our stock in Alicante
Shipping
Free (mainland Spain)
Invoice
With VAT, for companies and institutions
Phone
+34 649 12 13 53 – answered by a person in Spain, not a robot
Email
info@mekelson.com – useful answers from our technical team
Technical Data
Output Voltage DC
0...30 V
Output Current DC
0...2 A
Power Supply Type
Linear
Number of outputs
2
Programmable (RS485/USB)
No
Efficiency %
≤ 65 %
DC voltage line regulation ±10%(FS)
< 0.3%
Ripple U mVrms
≤ 5 mVrms
DC current accuracy(FS)
< 0.5%
Ripple I mArms
5 mArms
Operating temperature
0 °C - 40 °C
Operating relative humidity
< 80%
Storage temperature
-10 °C - 70 °C
Storage relative humidity
< 70%
Current auto-ranging (mA)
No
Output on/off
No
Voltage and current
Fine adjustment
Yes
DC voltage accuracy(FS)
< 0.5%
DC voltage load regulation 0-100%(FS)
< 0.3%
DC current line regulation ±10%(FS)
< 0.3%
DC current load regulation 0-100%(FS)
< 0.3%
Input voltage
110 VAC 60Hz / 220 VAC 50 Hz
Display
Display digits
3
Power display
No
Device configuration
Model name
LPSLE
Cable length
1.5m
Cable plug
EU plug
USB ports
USB Ports
No
Weight & dimensions
Dimensions
420 x 220 x 320 mm
Weight
13.5 Kg
